Miller Hayashi Architects, 2012-2013
Project Status: Built
Delivery Method: Design-Bid-Build
Click for Miller Hayashi’s project page.
Experience
Project phases: Schematic Design, Design Development, Construction Documents
Responsibilities: Joined the design team early in Schematic Design and worked through the end of Construction Documents. As this was a small team, I worked on all facets of the project, from concept development to technical coordination and drawing production.

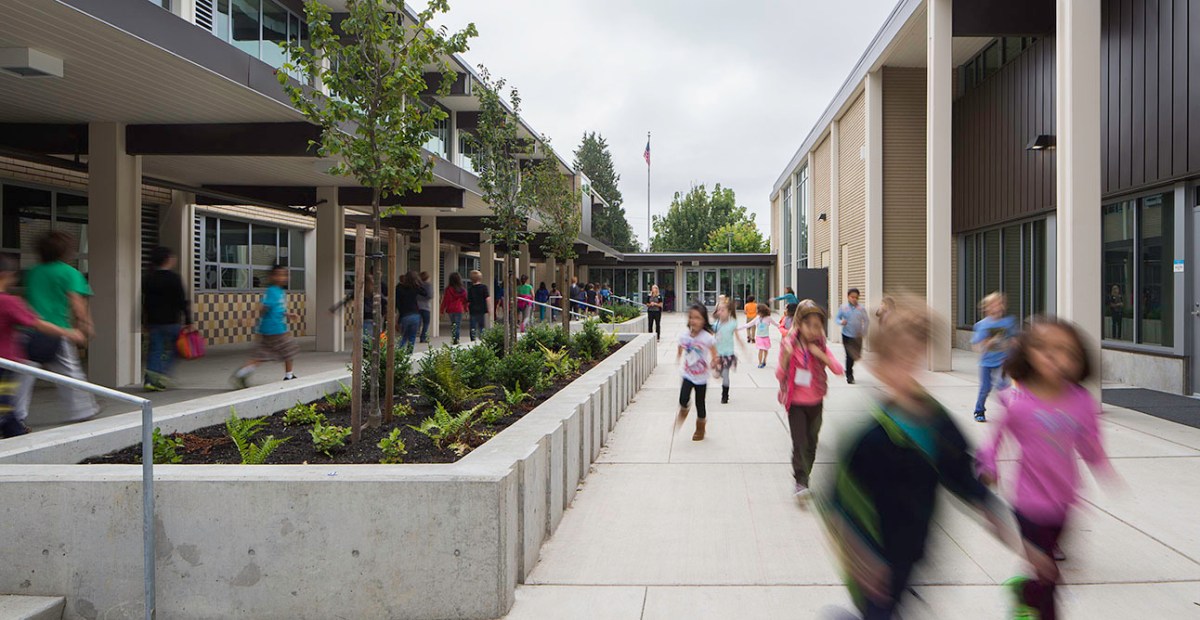

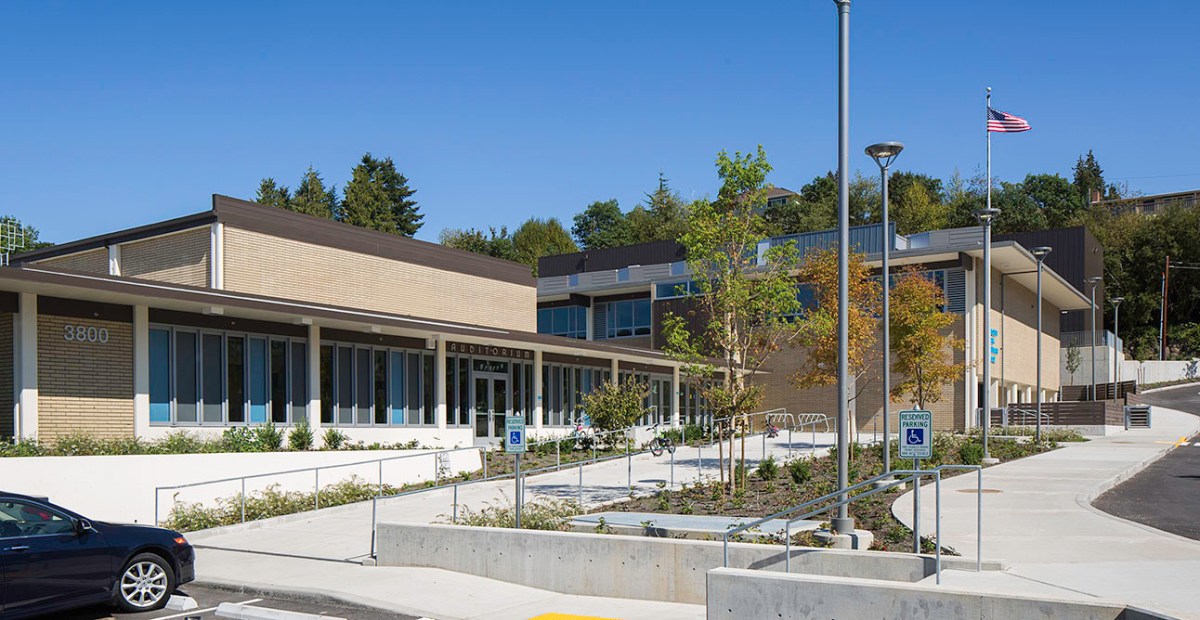

The Fairmount Park Elementary project renovated and modernized a mid-century elementary school in the West Seattle neighborhood of Seattle. Constructed in 1964, the original building provided 40,000 square feet of enclosed space distributed between two unconnected wings. These wings were joined by new, interior connections. The two-level addition adds 20,000 square feet of classroom space and 200 new seats. It also abuts a Steep Slope Environmentally Critical Area.
The project’s modernization work rehabilitated the building envelope, including roof replacement, exterior wall updates, and new energy efficient window systems. It also included general structural upgrades and seismic retrofitting. It renovated or replaced the mechanical, electrical, and plumbing systems, and a variety of site work was carried out as well.

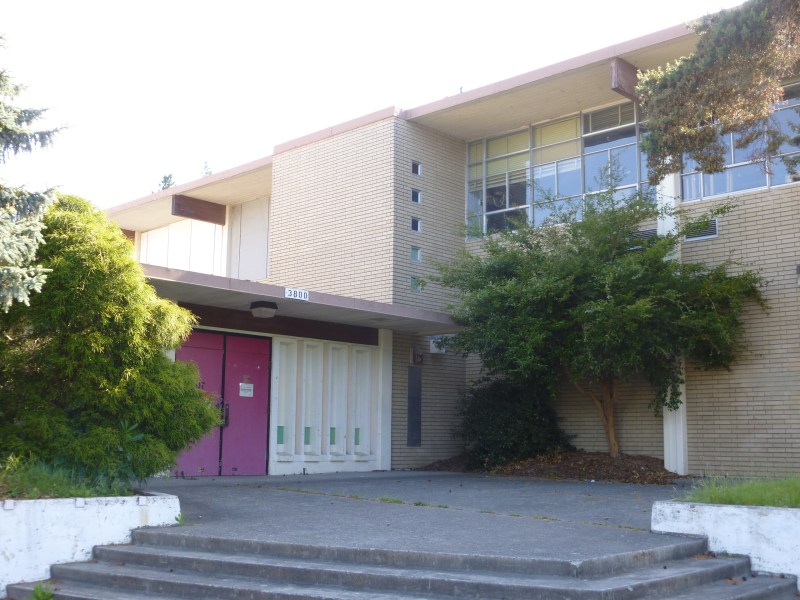

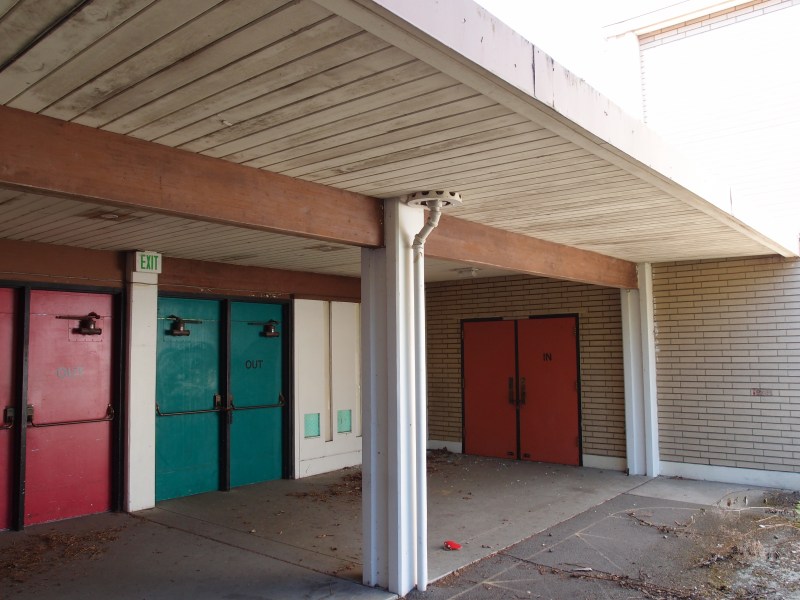

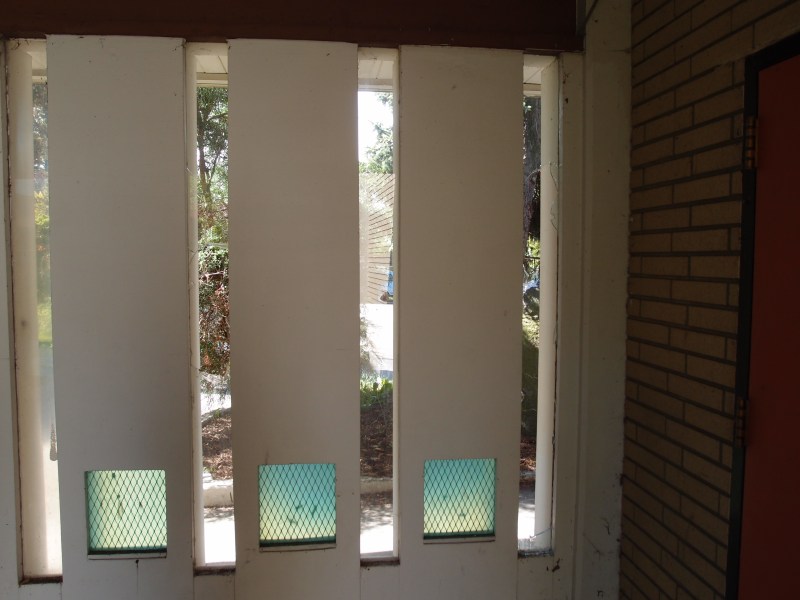

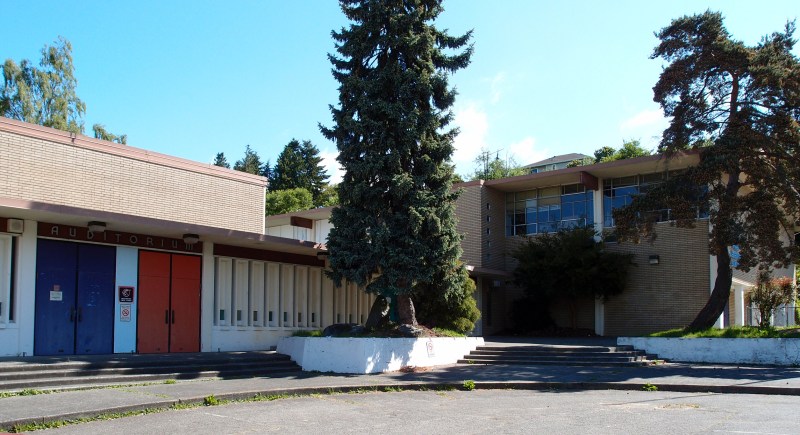

Existing building photos – Click thumbnails for slideshow
Among the project’s various environmental features, it employs centrally-monitored energy management for HVAC systems and power. It also uses lighting controls, materials with recycled content, and a high-efficiency boiler system. It is insulated beyond code minimums and orients openings in the new wing to capture daylight while preventing unwanted solar gain.

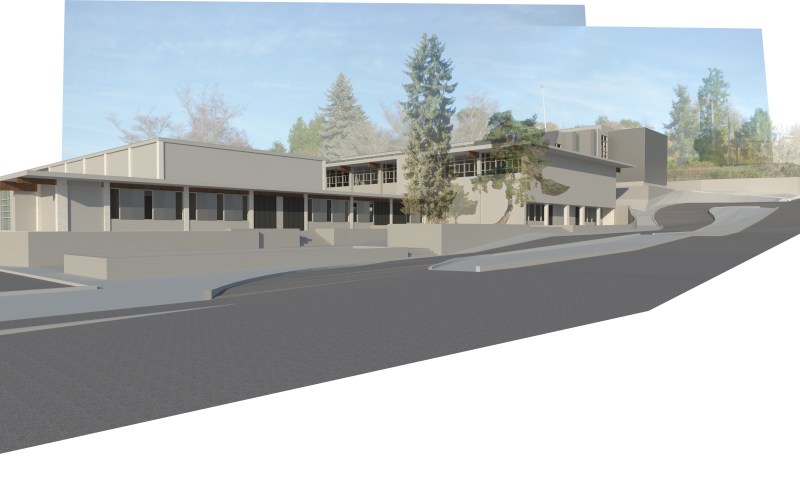

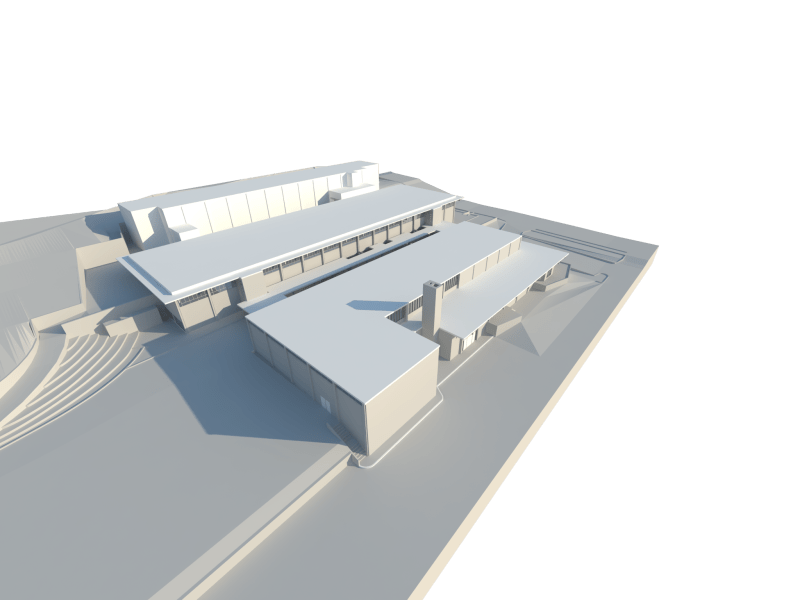

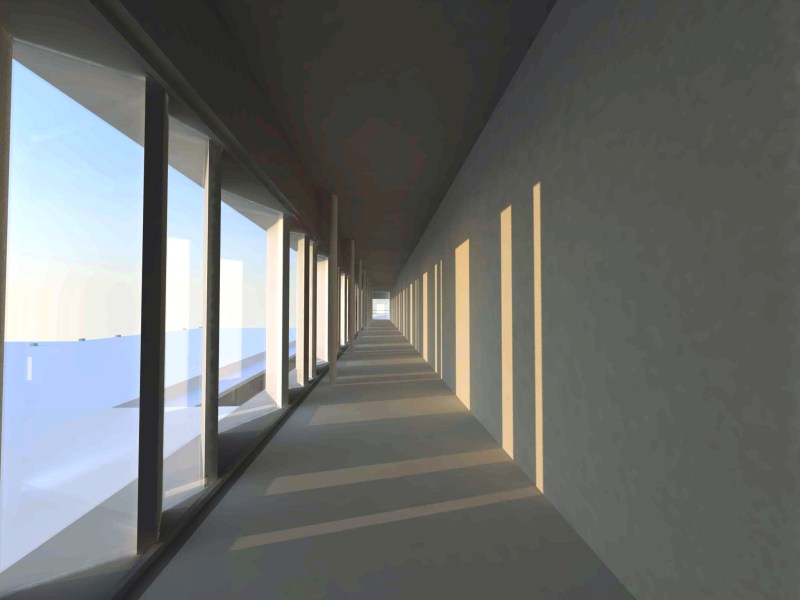

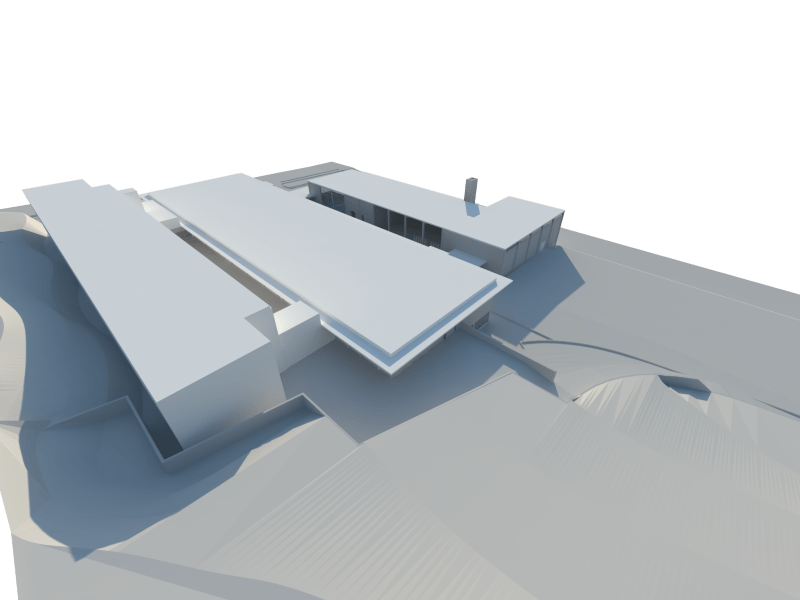

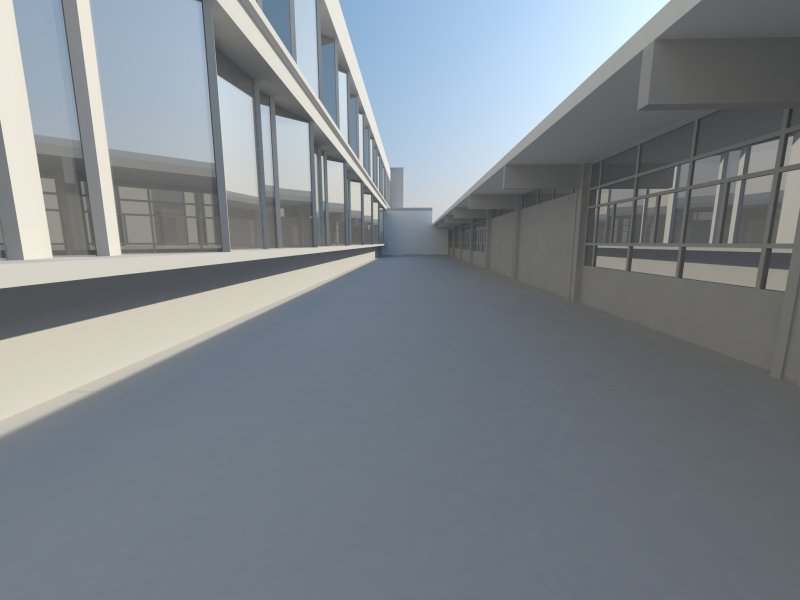

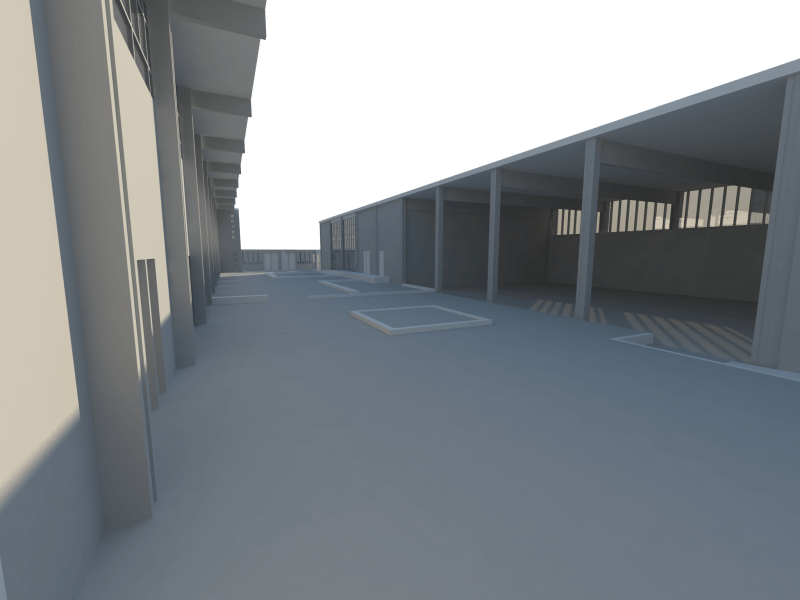

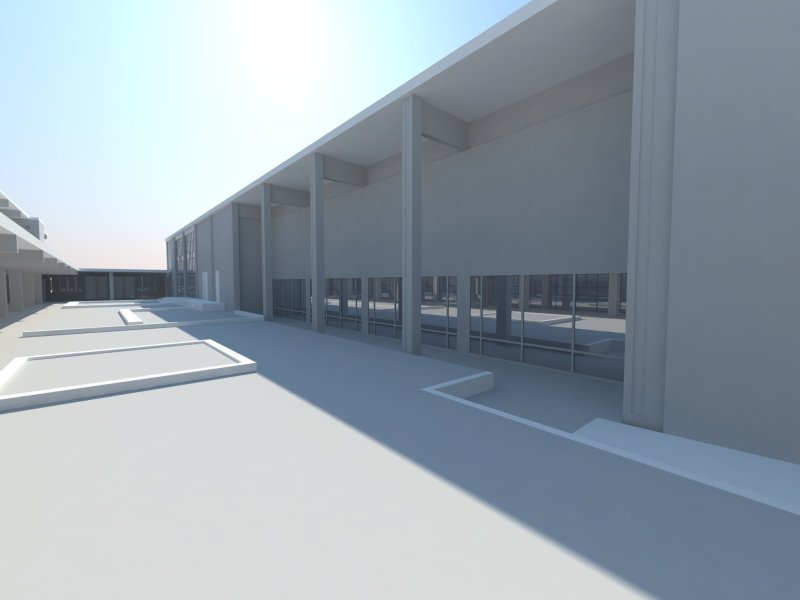

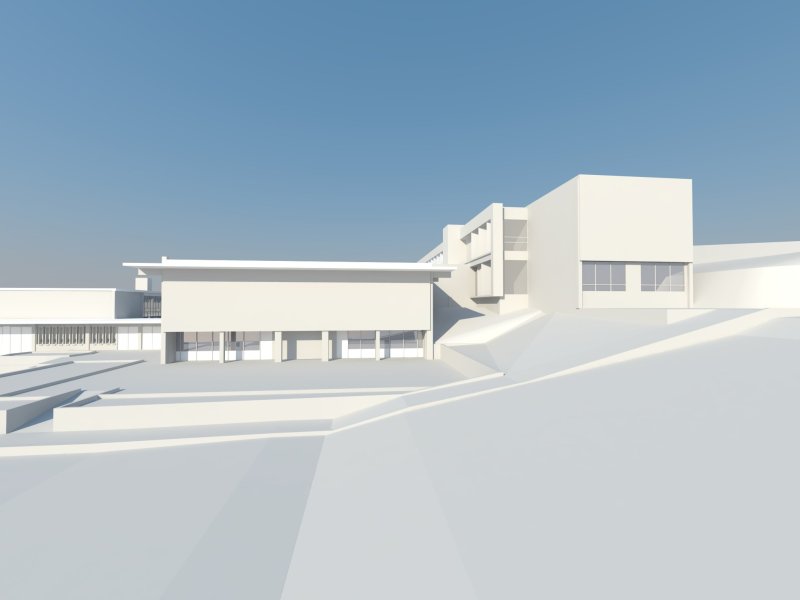

Digital study model samples – Click thumbnails for slideshow
Owner: Seattle Public Schools
Contractor: Allied Construction Associates
Structural and Civil Engineers: KPFF Consulting Engineers
MEP Engineers: Hargis Engineers
